Product Description
Gloss Meters - IG-410 Gloss Meters - Digital High Efficiency and precision Dual Range Gloss Meter
| Gloss Meters - Digital High Efficiency Dual Range Gloss Checker |
| Gloss Checker Series |
| Item Number: IG-410 |

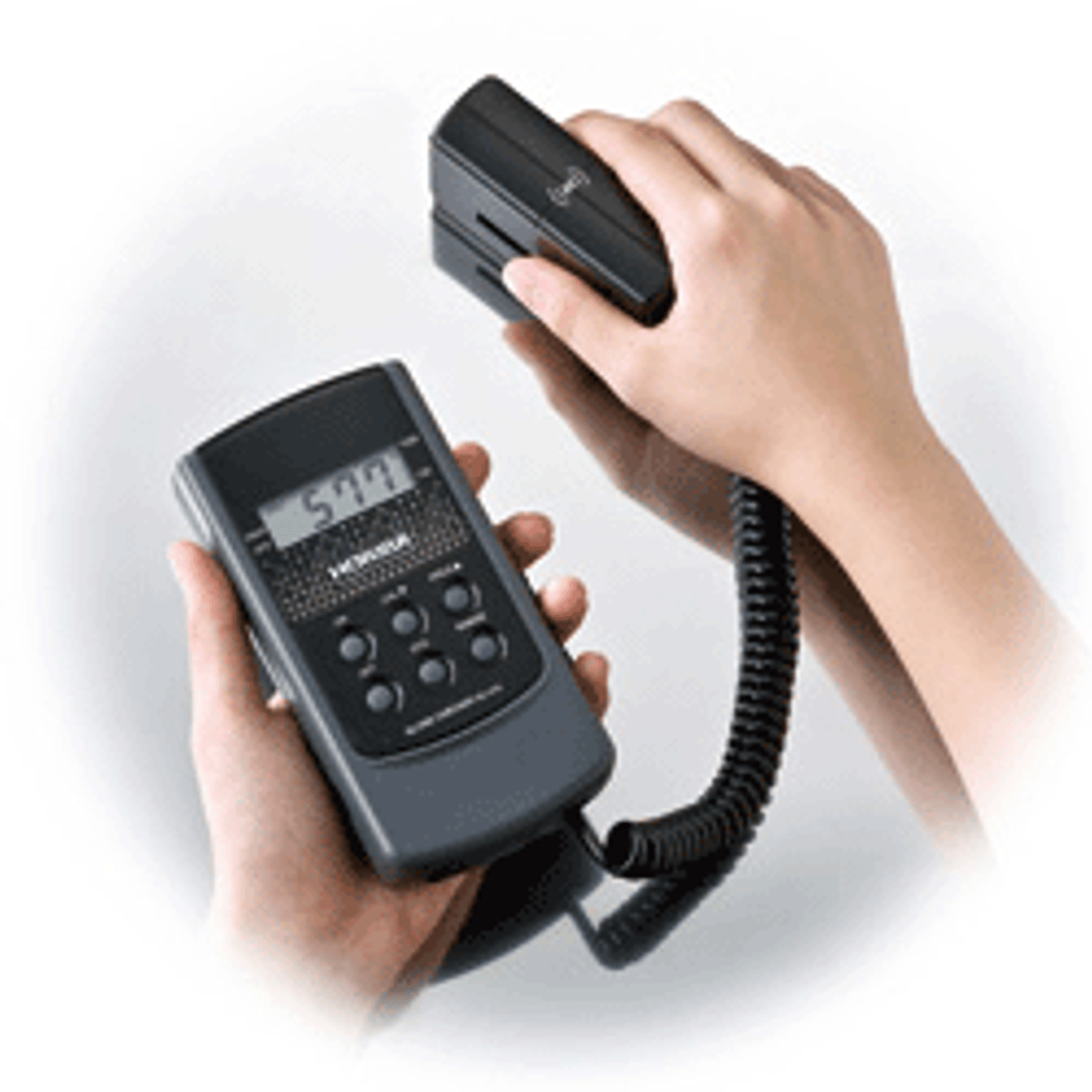

The IG series Gloss Checkers display gloss measurements as numerical data, eliminating ambiguity and ensuring objective evaluation of a product's quality. Compact in design and ready when powered on, all the user needs to do is hold the portable gloss checker against the surface being evaluated for quality control of paints, polishes, floor maintenance and many other industrial applications.
The IG-410 has 2 user-selectable measurement ranges, depending on the sample to be measured. Los gloss samples can be measured using the 0-100 range and high gloss samples can be measured using the 0-1000 range. 2 calibration plates are provided to allow the user to follow a simple one-touch calibration procedure to ensure reporducible results.
Dual measuring Range (0.0~100.0 ; 0~1000)
Compact, lightweight, and easy to operate
Suitable for a variety of applications
Provides accurate measurement results unaffected by color or ambient light
The flexible, remote connection of the probe to the display unit ensures greater work efficiency and safety
High efficiency measurements
Simple one-touch calibration
Gloss Meters - Useful Applications
| Quality control of paint and ink For quality testing, outdoor exposure testing, hue adjustment or luster testing. |
| Check and diagnosis of coated surfaces Check external coating, cleaning or waxing condition of vehicles, shops, aircraft, bridges, iron/steel frames, and structures or prefabricated structures, etc., and diagnosis of deterioration. |
| Checking printed matter Evaluation of embellishing properties in varnishing stage (lamination, endless processing, etc.); evaluation of time-induced change and uniformity of surface after drying process; checking paper surface condition. |
| Checking external appearance of plastic molding For checking external appearance of molded resin products and evaluating weather resistance. |
| Checking building and masonry finishes Inspection of external appearance, completed product test and site finish test in production stage of enamel, sash, floor materials, stone materials, furniture, etc. |
| Floor maintenance needs Inspection of waxed floor finishes in hotels, office buildings and stores. |
| Other uses For checking quality and external appearance of film, tape, rubber, leather, etc. |
Specifications
| Model | IG-410 |
| Measuring System | 60° |
| Measuring Area | 3 x 6mm oval |
| Light Source | LED <890nm> (Indefinite) |
| Detector | SPD <890n,> (Silicon photodiode) |
| Measuring Range (Resolution) | Range1: 0.0~100.0 (0.1) Range2: 0~1000 (1) |
| Repeatability | ±1%F.S. |
| Power Source | R6 (AA) Alkaline x 4 (200 hours or more at continuous operation) |
| Ambient Temperature Range | 10-40°C |
| Dimensions | Main body: 5.5W x 3.0D x 13H in. Optical system: 3.5W x 1.2D x 1.8H in. |
| Mass | ~350g (including battery) |
| Additional Functions | Automatic calibration Automatic power cut-off Overrange display Display hold |
| Accessories | Standard plate for range 100, 1000 |
