IP810B Seametrics Paddlewheel Insertion Meter: Brass, Size: 1/2" to 3", Max. Pressure 200 PSI (14 Bar)

Product Description

Features

• High-quality ruby bearings for excellent low-flow performance and long life
• One easily-replaced moving part
• Pickup exerts no magnetic drag on the rotor
• Square-wave frequency output can connect directly to PLC's or counter controls

• Indicator or transmitter can be mounted on the flowmeter or remote
• Fittings are available in a wide variety of materials and sizes
• Fits 1/2” to 8” pipe

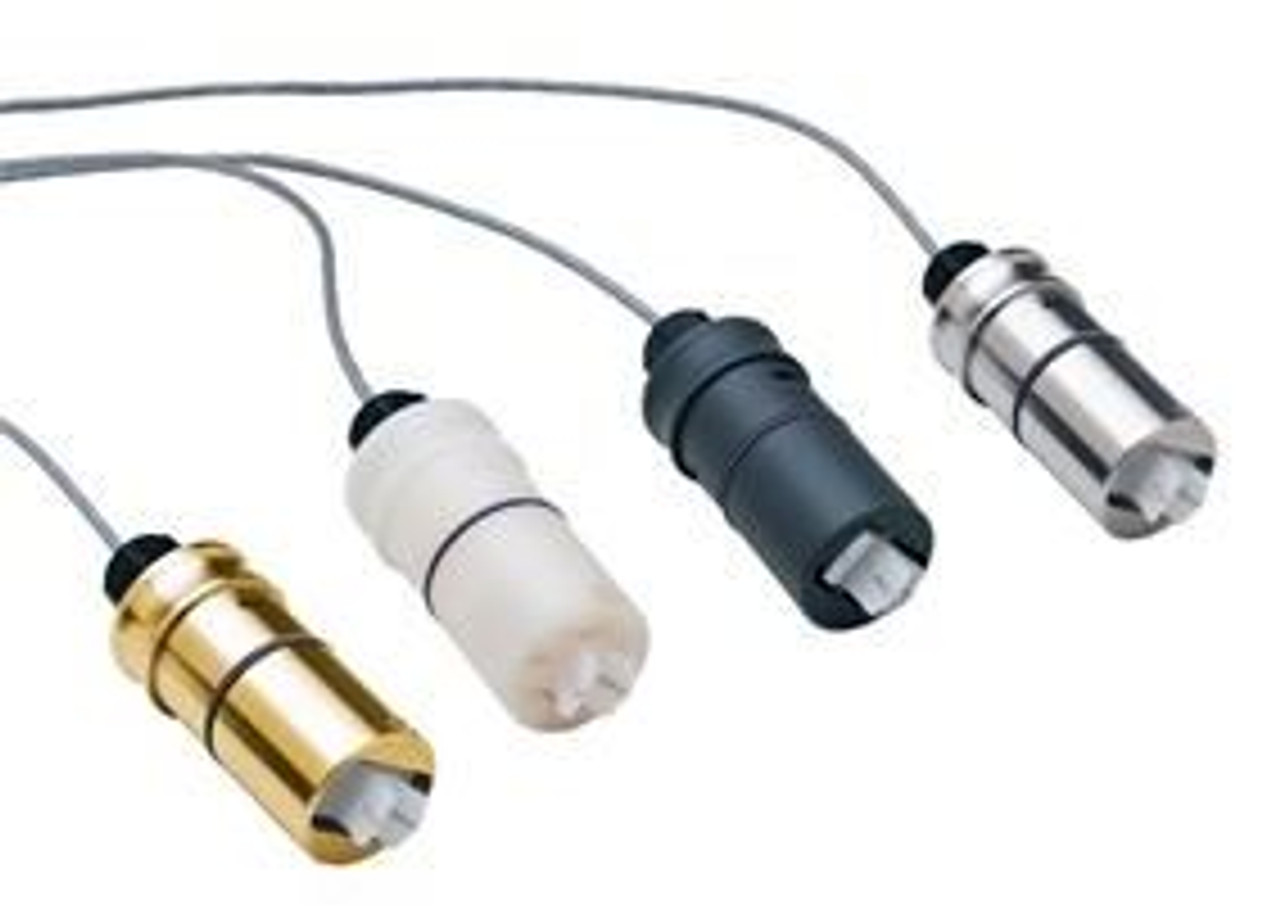

The IP80-Series are impeller (or “paddlewheel”) insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2" to 8". Sensors are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High-quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. Low-flow performance is good, although other Seametrics flow meters are recommended where extremely low flows are being measured.
The IP80-Series require special fittings that ensure correct depth placement in the pipe. Fittings come in a variety of materials for compatibility with specific applications. Tee fittings are individually wet-calibrated at the factory and marked with the K-factor (pulses per gallon). Saddle fittings must be field-installed on the pipe and do not come wet-calibrated. K-factors for saddles are based on factory-testing.

Applications:
Industrial water/wastewater treatment
Cooling water monitoring
Industrial fluid control
Chemical proportioning


Specification
