Product Description

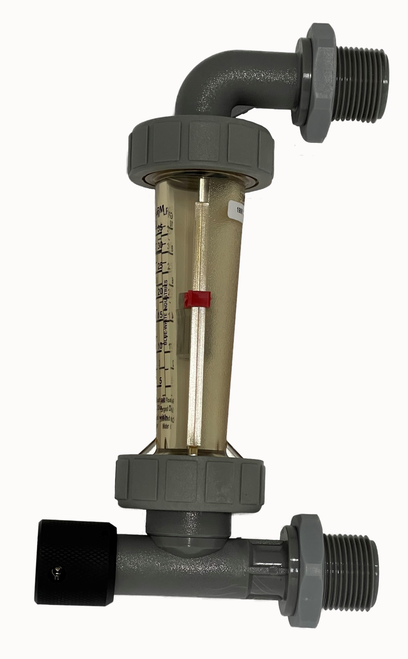

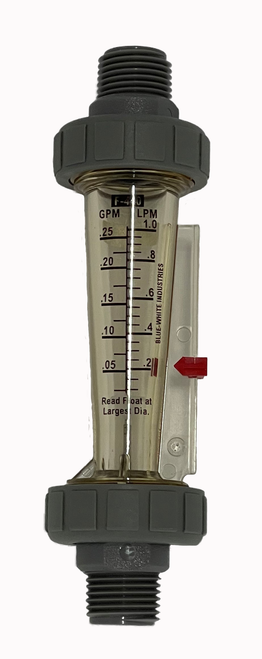

| Mechanical Flowmeter with Polysulfone Meter Body |
| BlueWhite F-450N Standard Adjustable Models. |
Features
- Tough Polysulfone meter body resists high temperatures and pressures
- Compact size for tight installation spaces
- 4" scale length for easy reading (approximate)
- Direct reading permanent scale
- In-line, Panel mount or Adjustable configurations available
- Optional integral flow adjustment valve
- NOT recommended for direct sunlight applications
Specification:
Max. Working Pressure: 150 psig (10.3 bar) at 70°F (21°C)
Max. Fluid Temperature: 212°F (100°C) @ 0 PSI
Full Scale Accuracy: ±-5%
Meter Body Material: Polysulfone
O-ring Seals: Viton (optional EP)
Approx. Shipping Wt.: 1/2 lb. (0.23kg)
Standard Adjustable Models
|
Model Number
|
GPM
|
Pipe Size
|
Float Material
|
|
F-45375LA-6
|
0.1 to 1.0
|
3/8" F/NPT
|
Teflon
|
|
F-45375LA-8
|
0.1 to 1.0
|
1/2" M/NPT
|
Teflon
|
|
F-45376LA-6
|
0.2 to 2.0
|
3/8" F/NPT
|
316 SS
|
|
F-45376LA-8
|
0.2 to 2.0
|
1/2" M/NPT
|
316 SS
|
|
F-45500LA-6
|
0.5 to 5.0
|
3/8" F/NPT
|
316 SS
|
|
F-45500LA-8
|
0.5 to 5.0
|
1/2" M/NPT
|
316 SS
|
|
F-45500LA-12
|
0.5 to 5.0
|
3/4" M/NPT
|
316 SS
|
|
F-45750LA-12
|
1.0 to 10.0
|
3/4" M/NPT
|
316 SS
|
