Product Description

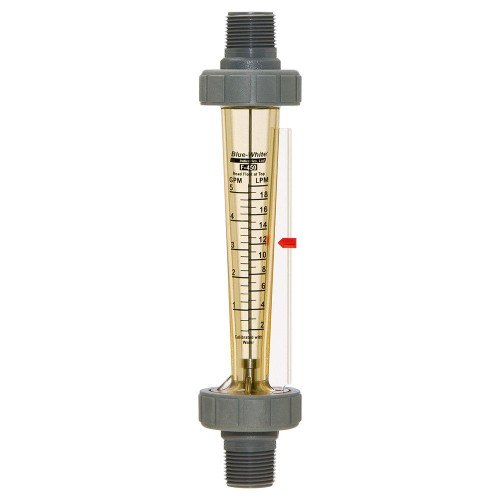

| Mechanical Flowmeter with Polysulfone Meter Body |
| BlueWhite F-440 Standard Adjustable Models. |
Features
- Tough Polysulfone meter body resists high temperatures and pressures.
- Compact size for tight installation spaces
- 2" scale lenght (approximate)
- Direct reading permanent scale
- In-line, Panel mount or Adjustable configurations available
- Optional integral flow adjustment valve
- NOT recommended for direct sunlight applications
Specification:
Max. Working Pressure: 150 psig (10.3 bar) at 70°F (21°C)
Max. Fluid Temperature: 212°F (100°C) @ 0 PSI
Full Scale Accuracy: ±-5%
Meter Body Material: Polysulfone
O-ring Seals: Viton (optional EP)
Approx. Shipping Wt.: 1/2 lb. (0.23kg)
Standard In-line Models
|
Model Number
|
GPM
|
Pipe Size M/NPT
|
Float Material
|
|
F-44250LA-6
|
0.025 to 0.250
|
3/8"
|
PVDF
|
|
F-44250LA-8
|
0.025 to 0.250
|
1/2"
|
PVDF
|
|
F-44375LA-6
|
0.1 to 1.0
|
3/8"
|
316 SS
|
|
F-44375LA-8
|
0.1 to 1.0
|
1/2"
|
316 SS
|
|
F-44376LA-6
|
0.2 to 2.0
|
3/8"
|
316 SS
|
|
F-44376LA-8
|
0.2 to 2.0
|
1/2"
|
316 SS
|
|
F-44500LA-6
|
0.5 to 5.0
|
3/8"
|
316 SS
|
|
F-44500LA-8
|
0.5 to 5.0
|
1/2"
|
316 SS
|
|
F-44750LA-8
|
1.0 to 10.0
|
3/8"
|
316 SS
|
|
F-44750LA-12
|
1.0 to 10.0
|
3/4"
|
316 SS
|
Standard Panel Mount Models: GPH
|
Model Number
|
GPH
|
Pipe Size M/NPT
|
Float Material
|
|
F-44330LA-6
|
3.0 to 30.0
|
3/8"
|
Teflon
|
|
F-44330LA-8
|
3.0 to 30.0
|
1/2"
|
Teflon
|
|
F-44560LA-6
|
5.0 to 60.0
|
3/8"
|
316 SS
|
|
F-44560LA-8
|
5.0 to 60.0
|
1/2"
|
316 SS
|
